Alpha — not thoroughly tested. Use at your own risk!

Read and write Serato DJ Pro tag formats, embedded lyrics, and cover-art across MP3, WAV, AIFF, MP4, M4A, M4V, FLAC, OGG, and Opus. Plus a database V2 / .crate reader and writer, a History *.session parser, a .serato-stems sidecar decoder, and an audio-direct waveform renderer.

Status: 0.1.0. Alpha — not thoroughly tested; the API may change in any 0.x bump. Format support is reverse-engineered for interoperability. Not affiliated with, endorsed by, or sponsored by Serato Limited.

Platforms: tag readers and the waveform renderer are cross-platform. The .crate and database V2 writers gate on a Serato-process check, implemented for macOS (via pgrep) and Windows (via tasklist). On Linux and other hosts the probe raises SeratoCheckUnavailableError, and the writers refuse unless you pass serato_known_closed=True.

License: GPL-2.0-or-later — matching mutagen, the core's only runtime dependency. The optional extras add their own libraries ([render] → numpy/scipy/soundfile/Pillow, [gui] → PySide6, [connector] → mcp), and stem extraction / audio-direct Overview also shell out to the external ffmpeg binary. See LICENSE and NOTICE.

---

Install

pip install sidecaramel              # core
pip install 'sidecaramel[render]'    # + numpy/scipy/soundfile/Pillow for the waveform renderer
pip install 'sidecaramel[gui]'       # + PySide6 (render stack) for the drag-and-drop track viewer
pip install 'sidecaramel[all]'       # everything

From source:

cd sidecaramel
pip install -e .

---

What it covers

Surface	Read	Write
Serato blobs — Markers2, BeatGrid, Autotags, Analysis, Overview, FLIP	yes	yes (gated)
Serato Markers_ V1	yes (all containers)	yes for MP3/WAV/AIFF/MP4/M4A/M4V
.crate	yes	yes (gated)
database V2	yes	yes (gated, round-trip-safe via per-record _raw byte preservation)
History *.session	yes	–
Embedded lyrics (untimed) — USLT / ©lyr / Vorbis LYRICS	yes	yes (write_lyrics)
Embedded lyrics (timed) — SYLT	yes	yes (write_sylt, MP3/WAV/AIFF only)
.lrc sidecar — timed lyrics companion file	yes	yes (read_lrc_sidecar / write_lrc_sidecar, any container)
Cover-art — APIC / covr / FLAC Picture / Vorbis METADATA_BLOCK_PICTURE	yes	yes
Audio-direct waveform — per-column STFT, R=bass G=mid B=treble, any resolution	–	renders PNG
Overview-blob waveform — 240×16, 6×6×6 colour cube (v = 36a+6b+c, a=bass b=mid c=treble)	renders	encodes

Container coverage: MP3, WAV, AIFF (ID3 GEOB); MP4 / M4A / M4V (freeform atoms); FLAC / OGG / Opus (Vorbis SERATO_* comments). Unified *_any() dispatcher routes per extension.

---

Quick example

import sidecaramel

# Read — returns None for a file with no Serato data (or an unsupported
# container); raises FileNotFoundError for a nonexistent path.
meta = sidecaramel.read_serato_metadata("track.mp3")
if meta:
    print(meta["bpm"], len(meta["cues"]), len(meta["loops"]))

# Write — every audio-writer requires confirm=True
sidecaramel.write_serato_markers_full_mp3(
    "track.mp3",
    cues=[{"idx": 0, "pos_ms": 0,    "color": (204, 136, 0), "label": "intro"}],
    loops=[{"idx": 0, "start_ms": 17890, "end_ms": 21320,
            "color": (39, 170, 225), "label": "drop", "locked": True}],
    confirm=True,
)

# Lyrics — untimed write is container-aware (USLT / ©lyr / Vorbis LYRICS).
from sidecaramel.lyrics import read_synced_lyrics_as_lrc, write_lyrics
print(read_synced_lyrics_as_lrc("track.flac"))   # → LRC text or None
write_lyrics("track.mp3", "Some lyrics", confirm=True)

# Timed lyrics — ID3 SYLT (MP3/WAV/AIFF) or a container-agnostic .lrc sidecar
from sidecaramel.lyrics import write_sylt, write_lrc_sidecar, read_lrc_sidecar
pairs = [(0, "Some lyrics"), (2000, "right on time")]
write_sylt("track.mp3", pairs, confirm=True)
write_lrc_sidecar("track.flac", pairs, confirm=True)   # → writes track.lrc
print(read_lrc_sidecar("track.flac"))                  # → same pairs back

# Cover-art
from sidecaramel.art import read_cover_art, write_cover_art
mime, data = read_cover_art("track.m4a") or (None, None)
write_cover_art("track.mp3", open("cover.jpg", "rb").read(), confirm=True)

Cue / loop dict schema for the markers writers:

cue  = {"idx": int, "pos_ms": int, "color": (r, g, b),       "label": str}
loop = {"idx": int, "start_ms": int, "end_ms": int,
        "color": (r, g, b), "label": str, "locked": bool}

CLI mirrors the read side:

sidecaramel read   track.mp3
sidecaramel cues   track.m4a
sidecaramel loops  track.flac
sidecaramel lyrics track.wav
sidecaramel art    track.mp3 --out cover.jpg
sidecaramel blobs  track.mp3              # cross-container Serato-blob harvest

(sidecaramel inspect is a deprecated alias for blobs.)

---

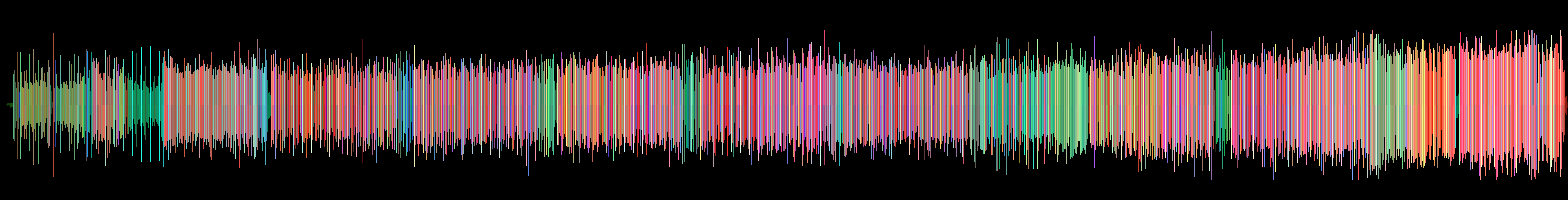

Audio-direct waveform — any resolution

sidecaramel.audio_render.render_big_waveform produces a full-track waveform straight from the audio at any width × height. Per column it does a short FFT, splits the energy into bass / mid / treble bands, and paints them additively as R / G / B.

from sidecaramel.audio_render import render_big_waveform_png

png = render_big_waveform_png("track.flac",
                                 width=1568, height=200,
                                 bass_boost=1.4, dynamics=1.7,
                                 axis_deg=135)

axis_deg picks one of four distinct vinyl-axis projections (0, 45, 90, 135, default 135); under abs-amplitude rendering only those four are visually distinguishable. The default is shared by render_big_waveform, render_big_waveform_png, the sidecaramel-render CLI, and the GUI viewer. See the audio_render docstring for the projection math.

---

Additional modules

Beyond the read/write core and the renderers, the package ships a few higher-level tools. They are functional but younger than the Serato-IO core — preview-grade, expect rougher edges:

Module	What it does	Extra deps
sidecaramel.gui	PySide6 drag-and-drop track viewer — waveform + beatgrid + cue overlay (python -m sidecaramel.gui [track])	sidecaramel[gui] (PySide6 + render)
sidecaramel.window_api	Windowed-waveform interface for live overlays (e.g. an external overlay.html L-view consumer)	sidecaramel[render]
sidecaramel.stems	.serato-stems sidecar decoder — all four stem types	sidecaramel[render]
sidecaramel.cuss_flip + sidecaramel.lrc_cusswords	Auto-generate Serato CENSOR FLIPs from cusswords found in embedded / LRC lyrics	core
sidecaramel.loops_extract	Write each Serato loop region out as a separate audio file	sidecaramel[render]
sidecaramel.flip_render	Bake a Serato CENSOR FLIP into new audio	sidecaramel[render]

---

Extension points

Nothing producer-specific is built in. A pipeline that writes its own sidecars registers them at start-up, and the defaults stay format-native:

from sidecaramel import consolidate, lrc_cusswords, stems

consolidate.add_companion_suffix(".mytool-anchors.json")  # moved with the audio
stems.add_external_stem_suffix(".mytool-vocals.wav")      # swept up on cleanup
lrc_cusswords.add_lrc_metadata_prefix("[mytool:")         # skipped when parsing LRC

Defaults: consolidate.SIDECAR_SUFFIXES covers .lrc, .serato-stems and the four .serato-*.wav stem artefacts (taken from sidecaramel.stems, so the two lists cannot drift apart); lrc_cusswords.LRC_METADATA_PREFIXES is empty, since the parser already drops well-formed [tag:value] lines.

---

Testing against real Serato data

Two opt-in environment variables point the golden tests at files Serato itself wrote — the only way to check the decoders against something other than this package's own output:

SIDECARAMEL_TEST_SIDECAR=/path/to/track.serato-stems \
SIDECARAMEL_TEST_AUDIO=/path/to/tagged-track.mp3 \
    pytest sidecaramel/tests -q

Without them those tests skip and the suite runs on synthetic fixtures.

A larger set of real Serato-tagged + blank baseline audio files lives on the gold-dropbox branch (checked out to roundtrip/, git-ignored). When present, test_serato_audio_roundtrip.py drives the full write path against them; it skips when they are absent.

---

Byte-for-byte fidelity

For the data-bearing blobs, sidecaramel reproduces the exact bytes Serato DJ Pro wrote — checked against real Serato output, not just self-round-trips. test_serato_audio_roundtrip.py goes end-to-end through real audio files: read a Serato-tagged track, re-synthesise each blob from the decoded data, write it into a copy of a blank baseline through the real (mutagen) writers, read the file back, and byte-compare. Byte-identical after that round-trip, across MP3/WAV/MP4:

blob	reproduced
Serato Markers2	the full outer GEOB/atom (base64 wrapped at 72 + NUL reserve) — cues, loops, labels, colours, BPM-lock, FLIPs
Serato Markers_ (V1)	both variants: 7-bit-masked (MP3/WAV) and raw (MP4), incl. the per-loop locked flag
Serato BeatGrid	the exact f32 anchor position + BPM
Serato Autotags	BPM + auto-gain
Serato Analysis	the version marker — 2-byte (02 01, MP3/WAV) and 3-byte (00 01 00, MP4)
.serato-stems sidecar	the container: srtshead header + stem chunk framing

A cue/loop edit is also non-destructive: rewriting only Serato Markers2 into a real tagged MP4 leaves every other blob — including the MP4-only RelVolAd / VidAssoc / playcount, which have no builder — byte-identical, and keeps all container atoms. And the sidecar's +12 payload boundary is confirmed by the LAME gapless identity holding on the real file: audio_frames × 1152 − encoder_delay − end_padding == total_samples.

Library files round-trip too: read_crate → write_crate reproduces a real Serato .crate byte-for-byte — the vrsn / osrt / ovct / otrk→ptrk TLV envelope, the volume-relative path convention, and the column spec all re-serialise exactly (test_serato_crate_roundtrip.py). Crates live in _Serato_/Subcrates/ (despite the name, these are the current crates; a top-level _Serato_/Crates/ folder is legacy ScratchLive-era).

Round-trip vs. green-field

Byte-parity holds for everything that is a function of the decoded data — parse → re-synthesise is a faithful inverse. It does not automatically hold for the writer's free parameters: values that carry no data and that Serato simply picks —

• the Markers2 GEOB NUL reserve (Serato leaves spare room in the tag: 426 B / 200 B / 6 B in the sample MP3/WAV/MP4 — the amount doesn't follow from the cues/loops), and
• the stem MP3 bytes (they depend on the exact encoder, not on "the data").

A round-trip reproduces these only because it copies them from the source it just read — the original blob's length fixes the reserve size, and Serato's stem payloads are passed through verbatim. A green-field write (no prior tag) has nothing to copy them from, so it must invent them, and Serato's choices aren't predictable: the data would be identical, only the reserve size / encoder bytes differ. Serato Overview is green-field by nature — recomputed from the audio by Serato's waveform algorithm — which is why it is the one data-bearing blob not reproduced byte-exact.

The .serato-stems chunk length

Each stem chunk is b"stem" + a 4-byte big-endian length + that many bytes, where the length counts the 4-byte stem index/type that prefixes the MP3 (length = 4 + len(mp3), so the MP3 frames start at chunk offset +12, not +8 or +16). Reading the length as "MP3 only" eats the first frame — LAME's Xing header — and silently drops 1152 samples (26 ms) of gapless alignment off the front. Cross-checked against Good Clean Stems' own serato_stems.py, which frames the identical bytes as size = len(payload) with the stem index at payload[:4].

---

Safety

Every audio-writer requires confirm=True. Without it, RuntimeError is raised. .crate and database V2 writers additionally refuse to write while a Serato process is running. The explicit-override kwarg is serato_known_closed=True (= "I have confirmed Serato is closed"); the legacy spelling allow_serato_running=True is still accepted but emits DeprecationWarning. Back up any track you care about before pointing a writer at it.

---

Privacy & security

sidecaramel runs entirely on your machine. It collects no data, makes no network requests at runtime, and has no telemetry or analytics — it only reads the audio and library files you point it at, in process, and never stores or transmits them. It handles no credentials or secrets. Write tools are confirm-gated and refuse to run while Serato is open, and every tool advertises its read-only / destructive intent to the MCP host. Full privacy policy (also hosted at https://rdkrl.github.io/sidecaramel/privacy.html) and security notes.

---

Preserving existing markers

write_serato_markers_full_mp3 / _mp4 default to preserve=True: when the target already carries a Serato Markers2 blob, a cue/loop write MERGES rather than rebuilds. Only the entry types you explicitly pass are replaced — AUTOGAIN, any unknown / future Serato entry, existing FLIPs, and a locked BPMLOCK survive byte-for-byte. bpm_lock now defaults to None ("leave the grid lock as-is"); it no longer writes an unlocked BPMLOCK by default. Pass preserve=False to rebuild the marker stream from scratch (the old behaviour), or call flip_writer.merge_markers2_inner() to drive the splice directly.

# Add cues to a track that already has a locked grid + AUTOGAIN —
# both survive; only the cues change.
sidecaramel.write_serato_markers_full_mp3(
    "track.mp3",
    cues=[{"idx": 0, "pos_ms": 0, "color": (204, 136, 0), "label": "intro"}],
    confirm=True)            # preserve=True is the default

---

MCP connector

pip install sidecaramel[connector] adds a local MCP server (sidecaramel-mcp, stdio) that exposes the library to MCP clients: read tools for metadata, blobs, sidecars, database listings and Overview renders, plus gated write tools. Every write refuses while Serato runs and fails closed when that cannot be determined; destructive operations require their own explicit confirmation on top.

One-click install (Claude Desktop)

For a no-terminal, no-JSON install, grab the sidecaramel.mcpb desktop extension from the releases and, in Claude Desktop, go to Settings → Extensions → Advanced settings → Install Extension…. It runs on the uv runtime, so the host provisions Python and the dependencies per platform — nothing to pip-install by hand. Build details and the manifest live in desktop-extension/.

Hooking it up

sidecaramel-mcp is a local stdio server. Most MCP hosts launch it directly as a command; hosts that speak only remote HTTP MCP (ChatGPT, the github.com coding agent) need it fronted by an stdio→HTTP bridge. Generic config (put sidecaramel-mcp on your PATH, or point command at your venv's python with "args": ["-m", "sidecaramel.connector"]):

{
  "mcpServers": {
    "sidecaramel": { "command": "sidecaramel-mcp" }
  }
}

Host	Where the config lives
ChatGPT	remote/HTTP only — front it with an stdio→HTTP MCP bridge, then add that URL as a connector (Developer Mode)
Claude Code	claude mcp add sidecaramel -- sidecaramel-mcp, or .mcp.json in the project
Claude Desktop	claude_desktop_config.json (macOS ~/Library/Application Support/Claude/, Windows %APPDATA%\Claude\) → mcpServers; restart the app
Cline / Roo (VS Code)	the extension's cline_mcp_settings.json → mcpServers
Continue.dev	the assistant config → mcpServers
Cursor	~/.cursor/mcp.json (global) or .cursor/mcp.json (project) → mcpServers
GitHub Copilot	in VS Code / JetBrains via the editor's mcp.json (stdio); the github.com coding agent takes remote MCP servers in repo settings
VS Code (Copilot agent)	.vscode/mcp.json → "servers": { "sidecaramel": { "type": "stdio", "command": "sidecaramel-mcp" } }
Windsurf	~/.codeium/windsurf/mcp_config.json → mcpServers
Zed	settings.json → context_servers with command

Config-file names and keys vary by host version (VS Code uses servers, not mcpServers); the stdio command / args shape is the constant — check your host's current docs if unsure.

Serato DJ 4.0

Serato DJ 4.0 (2025) moved the library store to an SQLite database and marks database V2 and the crate files [LEGACY]. Per-file data — the Serato blobs in tags and the .serato-stems sidecars — is unchanged, so everything in tags.py, stems.py and the Overview tooling works as before. The db.py / crate / consolidate paths target the LEGACY store: they still read it, but on a 4.0 library their writes are not authoritative. db.detect_library_format() (and the connector's serato_library_format tool) classifies a folder before any write.

Prior work

sidecaramel's reverse-engineering builds on public prior art rather than starting from a blank binary dump:

• Holzhaus/serato-tags — the primary reference for Serato's GEOB tag layouts (Markers2, Markers_ V1, BeatGrid, Overview, and more). Several layout constants and byte-offset choices in blobs.py and overview_palette.py are credited to this documentation inline (# github.com/Holzhaus/serato-tags, Holzhaus-verified) and, in at least one case in tags.py, corrected against it where a real file disagreed with the published spec.
• Holzhaus/triseratops — a from-scratch Rust reimplementation of the same formats, by the same author; useful as a second independent parser to cross-check edge cases against.
• Mixxx — the open-source DJ application independently reverse-engineered Serato's Markers2/BeatGrid formats for its own Serato-library import feature (2021 release notes; see also the project's Reverse-Engineering wiki page).
• Good Clean Stems — a separate, independently authored Serato-sidecar-building app. Its repository is public, but the software itself is licensed proprietary ("for evaluation and testing") per its own README — a different kind of debt than the three sources above. stems_encode's payload-conditioning rules (bare MP3 stream, no ID3 wrapper, Xing frame at byte 0, uniform sample counts) were derived by measuring sidecars it produces that Serato accepts, alongside sidecars written by Serato itself. No code from it is used or vendored here.

None of the above is vendored — sidecaramel is an independent implementation informed by this public documentation and by measuring real sidecar output, not a fork or port of any of it.

---

Known limitations

Honest scope statement before you wire sidecaramel into anything that matters.

• Real-Serato verification covers one reference track (three containers); broad-library corroboration is still limited. Most of the suite is self-referential (writers ↔ parsers on synthetic fixtures), but the core data-bearing blobs are now checked byte-for-byte against Serato's own output: test_serato_golden.py against real .blob payloads and test_serato_audio_roundtrip.py end-to-end through real Serato-tagged MP3/WAV/MP4 files (see Byte-for-byte fidelity above) — Markers2 (full outer), Markers_ V1 (masked + raw), BeatGrid, Autotags and the .serato-stems container all round-trip exactly. That corroboration comes from one carefully-tagged reference track across the three container envelopes; it is real third-party (Serato) output, not a broad multi-track / multi-Serato-version corpus. For Serato Overview, the byte model (6×6×6 colour cube, layout, background, flagged cells) is checked against Serato-written blobs of generated test tones (test_overview_cube.py, fixtures/overview_calibration/); the encoder recomputes the blob from audio and does not reproduce it byte-exact — see the green-field note above. The roundtrip_safety harness inventories and protects pre-existing Serato blobs; python -m sidecaramel.roundtrip_safety --from-copy <file> runs it against a copy of a real track.

• Markers2 write coverage. The MP3 / WAV / AIFF (ID3) and MP4 / M4A / M4V (atom) Markers2 + V1 write paths are exercised in CI on the Ubuntu leg, where ffmpeg synthesizes the cross-container fixtures; the macOS and Windows legs skip those fixture tests (no ffmpeg). Correctness against real Serato is still author-validated only (see the round-trip caveat above).

• ffmpeg is required for the full test matrix. Several tests synthesize cross-container fixtures via ffmpeg; they skip silently when it isn't on PATH. Install ffmpeg for the complete run.

• SYLT write is ID3-only. write_sylt() covers MP3/WAV/AIFF (the only containers with a native timed-lyrics frame). MP4 and the Vorbis containers have no directly analogous tag; use write_lrc_sidecar() for a container-agnostic timed-lyrics companion file instead.

• Writers fail silently. Most writers return False (or None, or []) on any error and swallow the underlying exception. As a library consumer you currently cannot distinguish "unsupported container", "corrupt file", "mutagen rejected it", and "bug in sidecaramel" — they all look the same. Refactoring the writer surface to raise typed exceptions is on the list for 0.2.0.

• Readers are also silent for non-fatal cases. read_serato_metadata() returns None for unsupported extensions, for files with no Serato data, and on internal parse errors — but raises FileNotFoundError for a nonexistent path so a typo is distinguishable from "no metadata". A broader read-side error-shape pass is on the 0.2.0 list.

• Audio writes are not atomic. Tag writers call mutagen.save() in place. A crash mid-save can leave the audio file in an unrecoverable state. The .crate and database V2 writers DO use tempfile + os.replace for atomicity; the per-track audio writers do not yet. Back up any track you care about before pointing a writer at it.

• .crate / database V2 write-gate covers macOS + Windows; Linux is "unknown". The Serato-running probe is pgrep -ix on macOS and tasklist /NH /FO CSV on Windows. On Linux or other hosts the gate raises SeratoCheckUnavailableError → the writer refuses to write unless you pass serato_known_closed=True (legacy allow_serato_running=True).

---

Tests

pip install pytest
pytest sidecaramel/tests -q

Install ffmpeg to enable the cross-container fixture tests (otherwise the ffmpeg-dependent fixtures skip).
